Create Custom Action

1. Navigate to Custom Actions List​

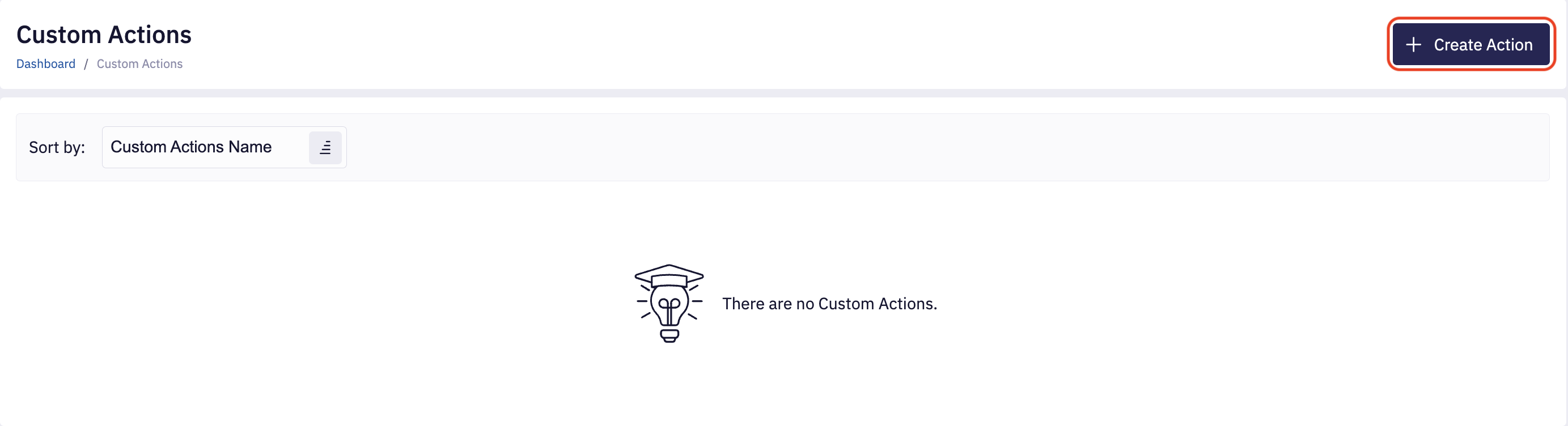

To create a Custom Action, select Custom Actions on the left menu. Then, click the Create Action button.

2. Fill in Action Details​

In this step, enter required Action Name and select an Action Color. Providing description is optional.

3. Define Action Settings​

In this step, you should choose Action Scope.

We have the following scopes:

  • Plan-based: Action will be executed a single time in your plan.
  • Resource-based: Action will be executed for every resource (based on Resource Groups).

Next, you should select an Action Type and fill up required parameters.

For Plan-based scope, user can define one of these types:

  • AWS Lambda: Executes a Lambda function using the provided ARN. Lambda must have a resource-based permission policy configured allowing Fleet Control to invoke it. The Configuring AWS Lambda Permissions section below explains how to configure these permissions.
  • AZURE Function: Executes a function using provided function URL, HTTP Method and Access Key ID.
  • Webhook: Executes a webhook using provided URL, HTTP Method, Payload and HTTP Headers.

For Resource-based scope, user can use one of these types:

  • AWS Lambda: Executes a Lambda function using the provided ARN. Lambda must have a resource-based permission policy configured allowing Fleet Control to invoke it. The Configuring AWS Lambda Permissions section below explains how to configure these permissions.
  • AZURE Function: Executes a function using provided function URL, HTTP Method and Access Key ID.
  • Webhook: Executes a webhook using provided URL, HTTP Method, Payload and HTTP Headers.
  • SSM Document: Triggers an AWS SSM Document using its SSM Document Identifier.
  • Script: Executes a custom script provided during action creation.
warning

For Resource-based Script, ensure that your script exits with the proper exit status. Without this, the event action status for the resource won't be reported accurately.

4. Confirm and Finalize​

In the last step, make sure that provided data is correct and click Create Action button.

Configuring AWS Lambda Permissions​

For the Fleet Control to invoke your AWS Lambda function, the Lambda function needs to have a resource-based permission policy configured. Refer to the AWS documentation for a detailed step by step guide and various configuration options.

Here is an example AWS CLI command you can use to add the required permission policy to your Lambda function:

aws lambda add-permission --function-name '<LAMBDA NAME>' --statement-id '<STATEMENT NAME>' --action 'lambda:InvokeFunction' --principal '286863837419'

Substitute <LAMBDA NAME> with the name of your Lambda function and <STATEMENT NAME> with a unique name for the statement.
286863837419 is the Fleet Control AWS account ID.
